Sending one photo of your workshop is the fastest way to get a sheet metal storage solution that actually fits — your floor space, your material handling equipment, and your laser cutting workflow. At CK Metal Storage, we use that single image to build a free 3D layout of your facility before you commit to anything. No guessing, no costly surprises after installation.
Every Workshop Is Different — And That Changes Everything
If you’ve ever tried to order a sheet metal rack online and felt like something was off — the dimensions seemed fine on paper, but you weren’t sure how it would actually fit — you’re not alone.
Sheet metal storage isn’t like ordering a shelf from a catalog. Your workshop has its own layout, its own equipment, and its own flow. A rack configuration that works perfectly for a 5,000 sq ft facility running two fiber laser cutters might be completely wrong for a 2,000 sq ft shop where everything is moved by hand.
That’s why we don’t send a quote until we understand your space. And the easiest way to do that? One photo.
What We Can Actually Read from a Single Photo
You might think a photo just shows us how big your space is. But for our team, one image tells us almost everything we need to get started.
Here’s what we look for:

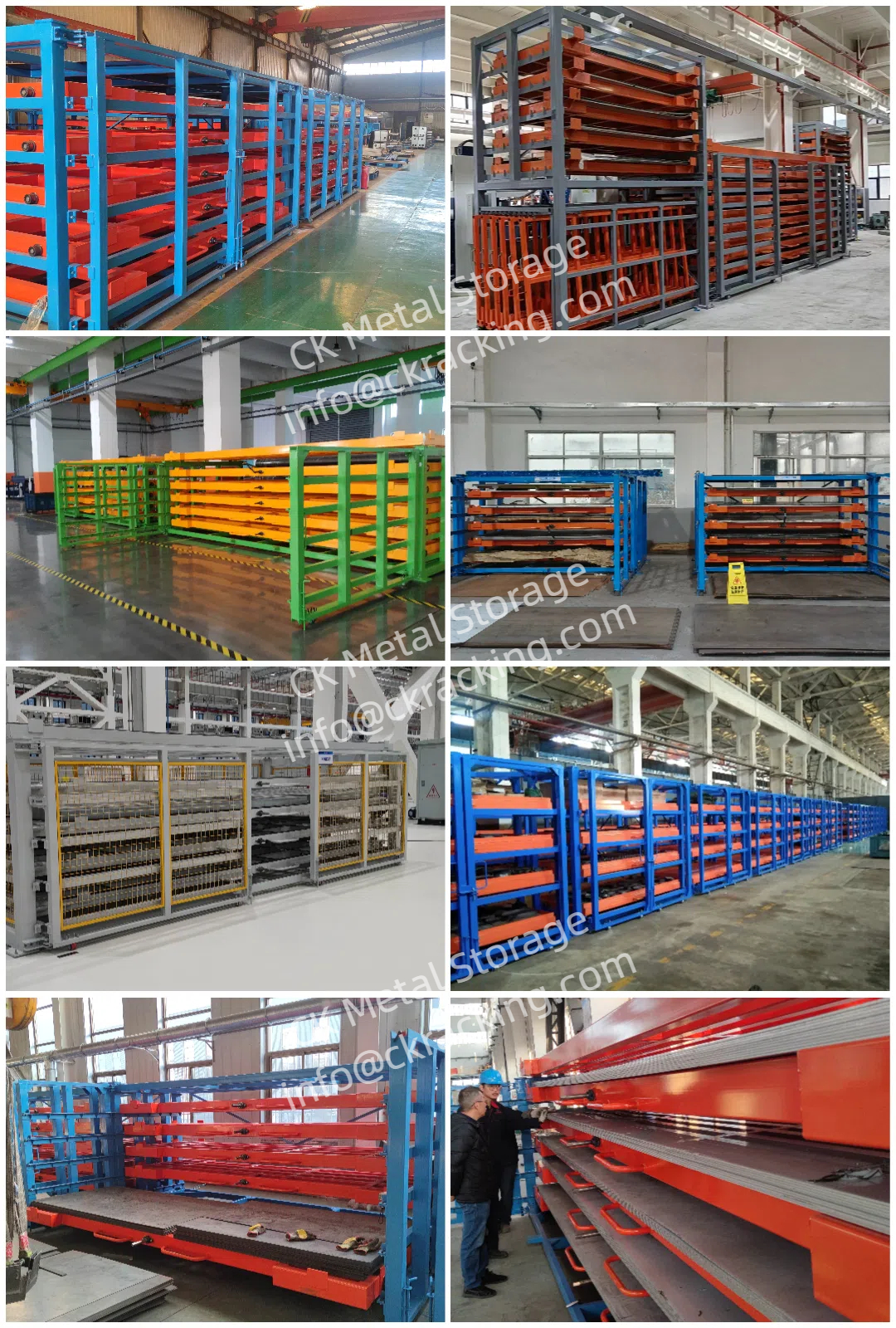

Your material handling equipment Do you have an overhead crane? A forklift? Or does your team move materials by hand? This determines whether we design a motorized rack, a roll-out system, or a manual pull-out configuration. A forklift-loaded rack built for a shop with no forklift is useless — and vice versa.
Your usable floor space and laser cutting machine layout Where is your laser cutter positioned? Where do raw sheets come in, and where do cut parts go out? We need to understand the flow, not just the square footage. A rack placed in the wrong spot can actually slow your operation down, even if it holds more material.
What materials you’re currently working with Steel plates, stainless sheets, aluminum, tubes, angle iron, flat bar — different materials have different storage requirements. Heavy steel plates need racks rated for serious load capacity (our standard configurations handle up to 15,000 lbs per unit). Thin aluminum sheets need gentler support systems to prevent surface damage.

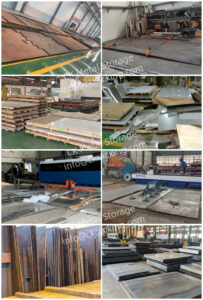

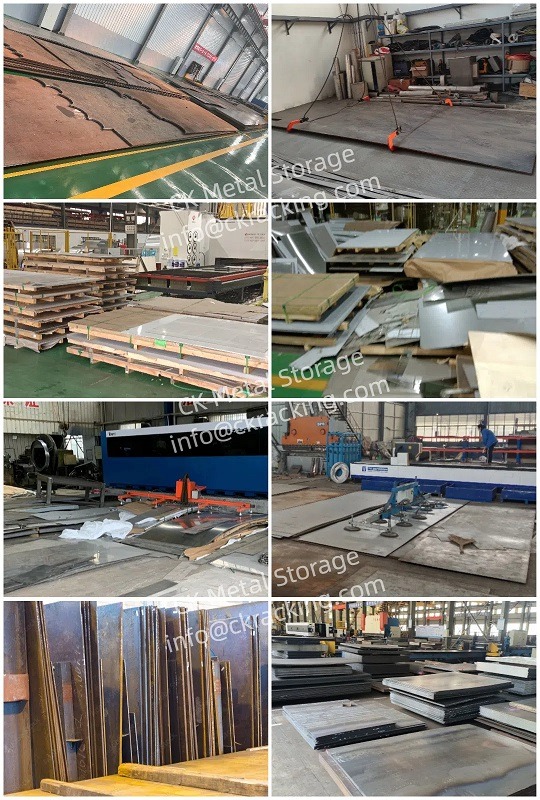

How your team actually uses the space Sometimes the photo shows us something the customer hasn’t even thought to mention — a low-hanging beam that limits rack height, a fire exit that can’t be blocked, or a section of floor that clearly gets used as a staging area. These details matter.
One photo. That’s genuinely all it takes to get started.
How We Turn Your Photo into a Free 3D Layout Plan
Here’s where things get a little different from what most suppliers do.

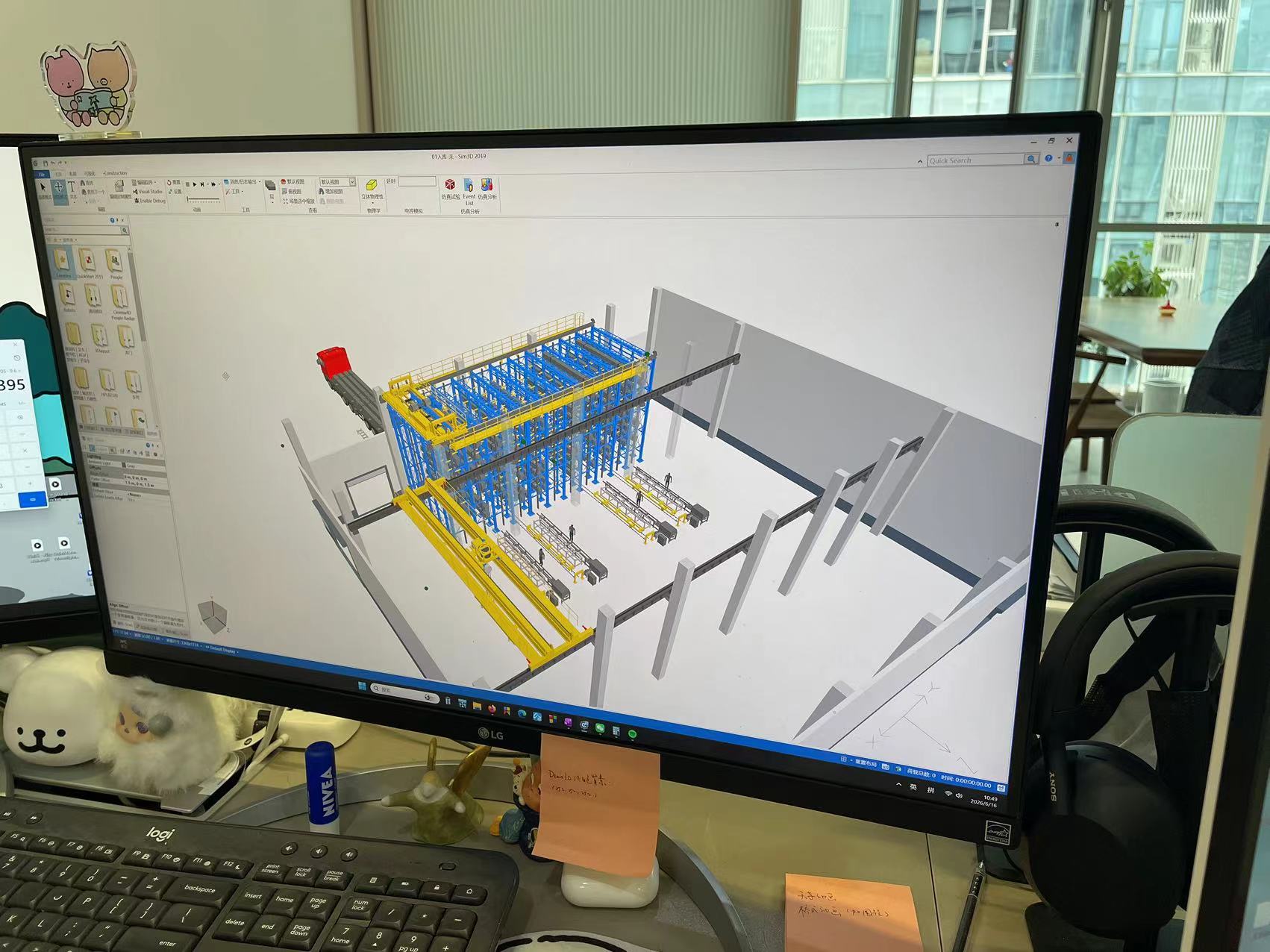

Once we receive your photo, we don’t just send back a spec sheet and a price. We rebuild your facility in 3D layout software — a virtual recreation of your actual space — and then we design your storage solution inside it.
What you get back isn’t a quote. It’s a visual.
You can see:
- Exactly where each rack will sit on your floor
- How much aisle space you’ll have left for forklifts or pedestrian movement
- Which rack type fits your ceiling height and loading method
- How your workflow changes once the storage is organized
This step costs you nothing. It’s part of how we work, because we’ve found that customers who can see the solution before they buy it make better decisions — and end up happier with the result.
For context: most of our customers are running 1,500–8,000 sq ft workshops with active laser cutting operations. A typical 3D layout plan is ready within 2–3 business days of receiving your photo.
What Happens When We Skip the Photo?
We get this question sometimes: “Can’t you just give me a rough quote based on my material volume?”
Honestly — we could. But here’s what that quote would be worth:
Without knowing your material handling equipment, we might spec a roll-out rack that you can’t actually load without an overhead crane you don’t have. Without knowing your floor plan, we might size a system that physically doesn’t fit your available footprint. Without knowing your ceiling height, we could design a vertical rack that hits your HVAC ductwork.
The cost of getting this wrong isn’t just the rack itself. It’s the installation labor, the delay in your production schedule, and — in the worst case — having to remove and replace a system that was never right for your space.
A photo takes 30 seconds to send. Getting the layout wrong costs weeks.
FAQ: Sheet Metal Storage Layout and Site Assessment
Q: Do I need to send a professional floor plan, or will a phone photo work?
A phone photo is completely fine — in fact, it’s what most of our customers send. We just need to see the general layout, your equipment, and how your materials are currently stored. A clear photo taken from a corner of the room works well. If your facility is large or has multiple zones, 2–3 photos from different angles help.
Q: What information should I include along with the photo?
A few key details make the process faster: your approximate floor dimensions (even a rough estimate helps), what material handling equipment you have (overhead crane, forklift, manual), the types of materials you store (sheet metal sizes and thicknesses), and your laser cutting machine model if you have one. But even if you just send the photo and nothing else, we can usually figure out what we need to ask.
Q: How long does it take to get a 3D layout plan?
Typically 2–3 business days after we receive your photo and basic information. For larger or more complex facilities, it may take up to 5 business days.
Q: Is the 3D layout planning service free?
Yes — completely free, with no obligation. We provide the 3D layout as part of our quoting process because we believe you should be able to see what you’re getting before you decide anything.
Q: What types of workshops do you typically work with?
Our customers are primarily metal fabrication shops, sheet metal processing facilities, and manufacturing plants with active laser cutting or stamping operations. Most run between 1,500 and 15,000 sq ft. We work with shops that handle standard steel sheets up to 4′ × 8′ and 5′ × 10′, as well as longer structural steel profiles, tubes, and flat bars.
Q: Can you design storage for both sheet metal and long material (tubes, bars, profiles) in the same facility?
Yes. Many of our customers store both. We design combined systems — sheet metal racks alongside cantilever or honeycomb racks for long profiles — and plan them together so they don’t compete for the same floor space.
Send One Photo. Get Your Free 3D Workshop Layout.
You don’t need to have everything figured out before you reach out. You don’t need a floor plan, a CAD drawing, or a formal RFQ.
Just take a photo of your workshop — the messier the better, honestly, because that’s the real starting point — and send it to us.
CK Metal Storage will build a free 3D layout of your facility, show you exactly how the storage solution fits into your space, and give you a clear, detailed quote based on your actual needs.
No guessing. No surprises. Just a solution that works.
